    Pics

    Hey guys, I've got to put the carbs back on my project bike; problem is they were already off when I got the bike. I know there are a few pics of the carbs on the site already but if you have some good ones for reference they would be appreciated. I also need to see the fuel pump in its native state and how the lines run to and fro.

    I"m looking to make sureI all the lines right; I'm going with the Pods so I'll definately use those shots already posted. Any other advice you can share would be most appreciated.

    George
    1988 Hawk GT
    2003 Moto Guzzi EVT

    #2
    my carbs are off right now so no pics of those but here are a few of the fuel pump and lines. I know these aren't great. Let me know if need a specific area and I can try for better pics. Here is another post on the inlet/outlet fun that may be helpful if you have not already found it.

    http://www.hawkgtforum.com/viewtopic.php?t=2185

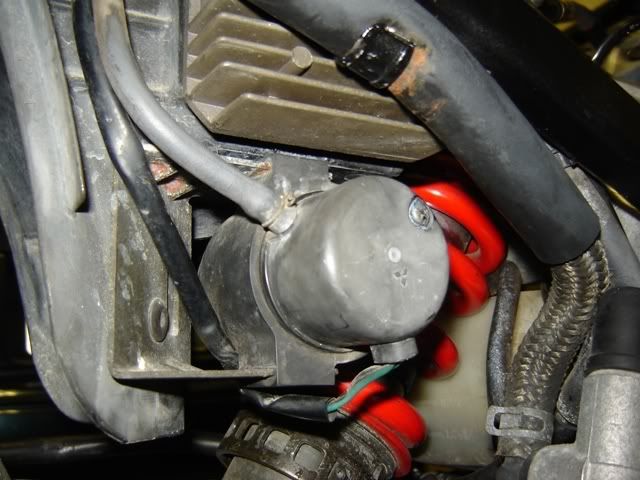

    pump from right side of bike

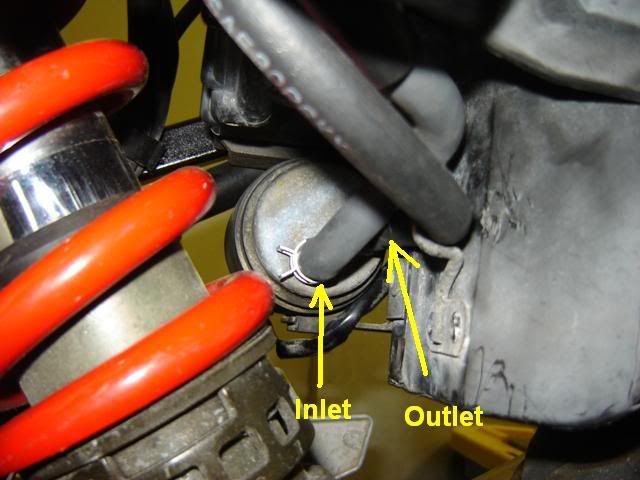

    pump left side. I didn't do this very well so the outlet is hidden. The line from the pump outlet to the coupler on the way to the carbs is a frankenstein of parts, the rest are oem.

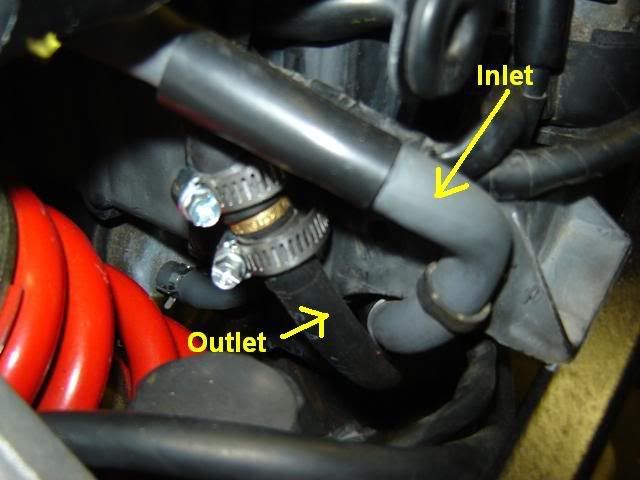

    this is almost useless... it is the left side of the bike and shows the inlet hose clipped to the fender plastic thing. The other hose is the outlet mess.

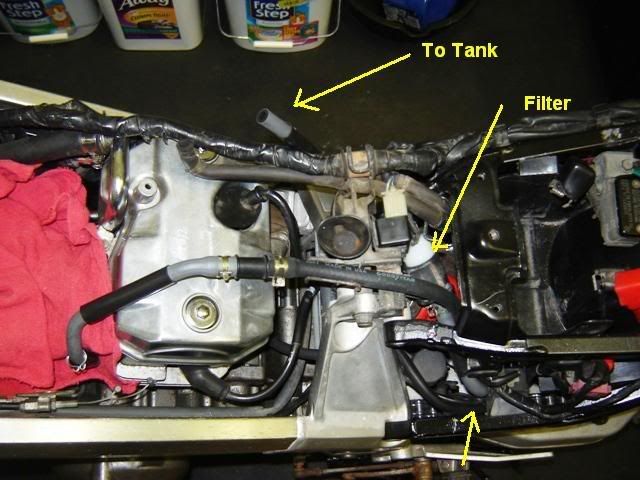

    the tank hose is routed under the wiring harness when the tank is on. The bottom arrow is the area of the pic above

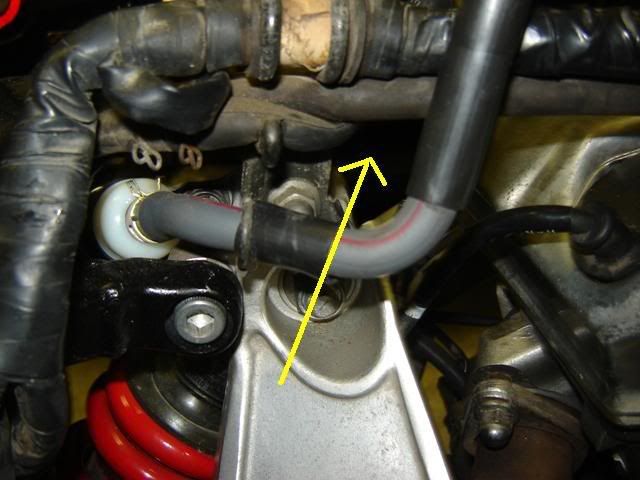

    this is from the right of the bike, the hose normally goes where the arrow is



    HTH

    Comment


      #3
      Thanks Kip! That's exactly what I needed on the fuel pump....

      Hope to hear it fire this weekend!

      Geo
      1988 Hawk GT
      2003 Moto Guzzi EVT

      Comment


        #4
        Cool. Let me know if figure out any tips or tricks with the pods. I have to put those on mine soon.
