    adjusting eccentric

    can the eccentric be swunag all the way around to raise the ride height like the zrex guys do
    looking for hawk paerts in all the wrong places

    current bikes
    fz1
    rsvr
    both black

    #2
    http://www.hawkster.de/modules.php?n...82a08c54e3#432

    You have to modify one screw
    Dirk

    Comment


      #3
      Originally Posted by Dirk
      http://www.hawkster.de/modules.php?name=Forums&file=viewtopic&p=432&sid=3 69d2e55f6ea50fdf8cb3d82a08c54e3#432

      You have to modify one screw
      Care to translate that?

      Comment


        #4
        I try to translate it

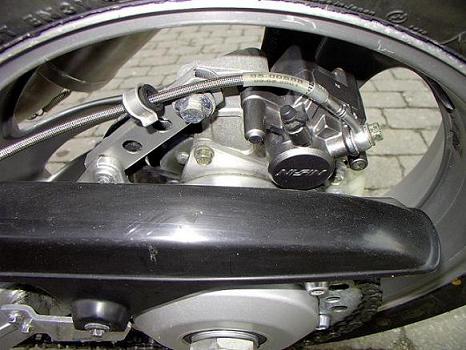

        You can not turning arround the eccentric all the way because there are two pieces block that.

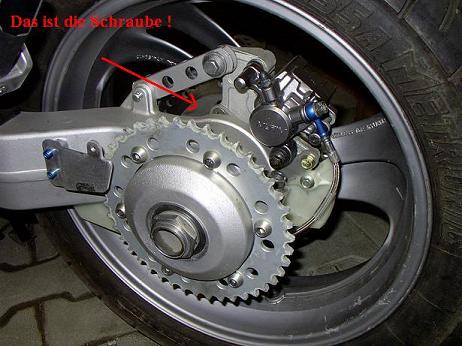

        The break caliper and this hexagonal screw on the brake caliper holder.



        You can not change the breake caliper but you can change the hexagonal screw on the brake caliper holder into a hexagon socket countersunk flat head screw.



        I hope you understand it
        Dirk

        Comment


          #5
          cool
          thanks
          looking for hawk paerts in all the wrong places

          current bikes
          fz1
          rsvr
          both black

          Comment


            #6
            Originally Posted by Dirk
            I try to translate it
            You can not turning arround the eccentric all the way because there are two pieces block that.
            The break caliper and this hexagonal screw on the brake caliper holder.



            You can not change the breake caliper but you can change the hexagonal screw on the brake caliper holder into a hexagon socket countersunk flat head screw.



            I hope you understand it
            Thanks

            Comment


              #7
              will that much adjustment change the ride height any significant amount.
              thanks
              looking for hawk paerts in all the wrong places

              current bikes
              fz1
              rsvr
              both black

              Comment


                #8
                You can not change the breake caliper but you can change the hexagonal screw on the brake caliper holder into a hexagon socket countersunk flat head screw.
                Any idea on how this could be done properly?
                -God, grant me the serenity to accept the things I cannot change, the courage to change the things I can, and the wisdom to hide the bodies of the people I had to kill because they annoyed me.

                Comment


                  #9
                  That would involve taking the bolt out and matching it up with a countersunk allen keyed/torx/whatever, flathead bolt.
                  I would expect you'll have to countersink the hole as well to achieve the flush mount bolt head that you're after...
                  Something like this...


                  Bill

                  Comment


                    #10
                    Huh, doesn't look to hard, thx.
                    -God, grant me the serenity to accept the things I cannot change, the courage to change the things I can, and the wisdom to hide the bodies of the people I had to kill because they annoyed me.

                    Comment


                      #11
                      you should make sure your chain is set right, before yuo could leave it like that. well couldnt that be a problem?
                      1988 & 1991 hawkgt, 2005 rc51

                      Comment


                        #12
                        BTW:
                        Metric fasteners are countersunk at 90 degrees. Imperial countersink tools are 82 degrees. (If it makes any difference)
                        -I'm sorry....I did not know she was your sister.
                        -If Buckleys cold mixture went rancid......how would anybody know????
                        -Dont piss off the quiet guy with the chain saw.

                        Comment


                          #13
                          God knows how far I'm gonna have to travel to find one that works. Local hardware doesn't carry much if any metric.
                          -God, grant me the serenity to accept the things I cannot change, the courage to change the things I can, and the wisdom to hide the bodies of the people I had to kill because they annoyed me.

                          Comment


                            #14
                            Ok, I got the right bolt that would mount flush after I countersunk it. I decided to put the chain on and flip the eccentric before doing any drilling. Good thing. It can be done and would raise the rear about 1-2 inches but, it makes your chain rub on the chain slide way to much. Would probably eat it away quick. Gonna skip trying this one.
                            -God, grant me the serenity to accept the things I cannot change, the courage to change the things I can, and the wisdom to hide the bodies of the people I had to kill because they annoyed me.

                            Comment


                              #15
                              that was something that crossed my mind too

                              for the guys that have done this mod
                              do you find the chain rubbs on the top of the chain slider to much???
                              1988 & 1991 hawkgt, 2005 rc51

                              Comment
