    Losing the rear brake res......

    I have seen many guys do this and use a peice of clear tubing for a reservoir. What kind of tube is it? Will vinyl tubing work or will brake fluid eat thru it? are there any pros or cons to this or is it just so the stock reservoir doesn't take up so much space? Hey Ovlovder....what kind of tube did you use?
    -NEVER LET YOUR FEARS STAND IN THE WAY OF YOUR DREAMS-
    Most of the pics I have of my Hawk/Mods: http://gallery.me.com/stevenhowell

    "Arseing about with my bikes will end in tears." -Keno04

    "Dress for the slide, not the ride" - ParcNHawk

    #2
    Its a piece of clear blue tubing I bought from Dennis Kirk for fuel line. With a short aluminum m8 screw in it.

    As usual, HRC makes a kit

    http://tyga-performance.com/site/pro...7e578e1a429c89

    or what id really like is one of these.

    whatsoever your hand should find to do, do it gladly, because there is no work, love, knowledge, or wisdom in the grave...

    Comment


      #3
      Answer HERE: http://www.maberacing.com/forum/viewtopic.php?t=70
      CVMA Expert 434
      LD Designs :: Pirelli :: Racer's Edge :: Woodcraft :: Chuckwalla Valley Raceway

      Comment


        #4
        hey thanks guys for the info.....in the other forum they said not to do it if you use the rear brake often. Now I know that I dont use the rear brake that often unless I am at a stop or if I need to slow very quickly. Should I worry about switching over to the tube since this is a street Hawk and not strickly a track Hawk? What about you Ovlovder, do you have any issues?
        -NEVER LET YOUR FEARS STAND IN THE WAY OF YOUR DREAMS-
        Most of the pics I have of my Hawk/Mods: http://gallery.me.com/stevenhowell

        "Arseing about with my bikes will end in tears." -Keno04

        "Dress for the slide, not the ride" - ParcNHawk

        Comment


          #5
          Originally Posted by Stevenjhow
          hey thanks guys for the info.....in the other forum they said not to do it if you use the rear brake often. Now I know that I dont use the rear brake that often unless I am at a stop or if I need to slow very quickly. Should I worry about switching over to the tube since this is a street Hawk and not strickly a track Hawk? What about you Ovlovder, do you have any issues?
          It works fine if you are at a stop. If you need to 'stop quickly' you uh.. don't really need to be on your rear brake anyhow. No one needs to stop quicker than us boys on the track and well... mine gets used once a weekend, in the Tech line.
          CVMA Expert 434
          LD Designs :: Pirelli :: Racer's Edge :: Woodcraft :: Chuckwalla Valley Raceway

          Comment


            #6
            Is ths set-up good for the street? I am more a front braker anyway and this would really clean up the rear and look cool...
            Rob
            88 Street Hawk
            F2 tank, Aztec8 dual 4", Duc seat and CF cowl, Stage 3 jet, Uni Pods, M4 stubby, SV650 clips, controls & fuel pump, GSXR front mc and CFB1000 front caliper, F3 forks upper and internals, Penske 8983, Gino RCR, rear jump plates & R6 pegs and Vapor gauge...
            04 CRF50 pit bike and stunt runner...
            91 Suzuki GSF400 Bandit (she's a runner now...)

            Comment


              #7
              Current Honda dirt-bikes have the all-in one unit. It is stock-looking and cast with a sight glass. A trip to the bike wrecker with the important dimensions from the Hawk unit might get a cool stock retrofit part.
              -I'm sorry....I did not know she was your sister.
              -If Buckleys cold mixture went rancid......how would anybody know????
              -Dont piss off the quiet guy with the chain saw.

              Comment


                #8
                My rear brake is rarely used, low trac. situations, or holding the bike at a stop. Occasionally when braking from higher speeds it is used very lightly.

                Obviously you NEED to keep a close eye on the fluid level after doing this mod. Though honestly I havent had to top off since I filled the system.
                whatsoever your hand should find to do, do it gladly, because there is no work, love, knowledge, or wisdom in the grave...

                Comment


                  #9
                  Anybody got before/after photos? This is a nice little mod!
                  1988 "BlackHawk" project
                  1989 "RallyHawk" is Chuck's now!
                  1988 "The Gray" Tempest Gray Metallic stocker

                  I can't tell you how peaceful it is. Shinya Kimura
                  People who know ride Hawks. Riot

                  Comment


                    #10
                    I also rarely use the rear brake, but I was wondering for "just in case"

                    Originally Posted by douglas.thompson
                    Anybody got before/after photos? This is a nice little mod!

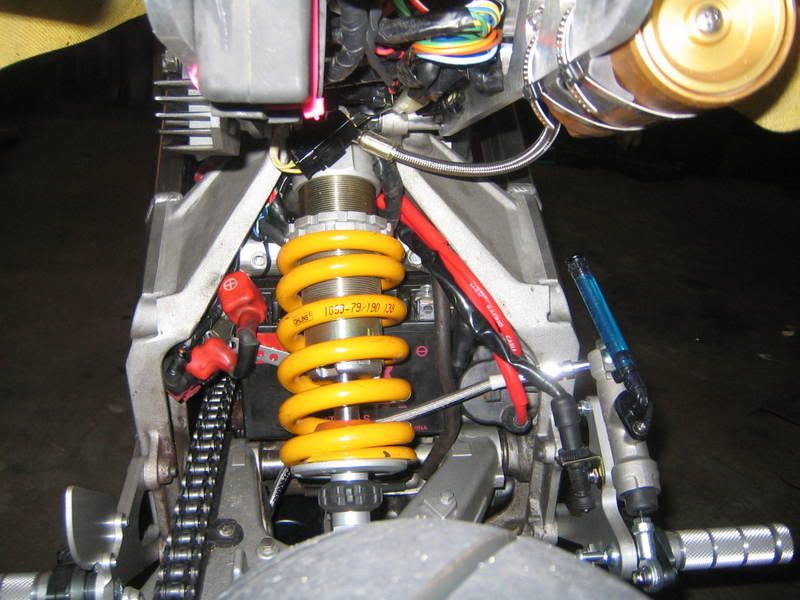

                    Look at ovlovder's post in the members ride section, he has a decent picture of it

                    Current Honda dirt-bikes have the all-in one unit. It is stock-looking and cast with a sight glass. A trip to the bike wrecker with the important dimensions from the Hawk unit might get a cool stock retrofit part.
                    SWEET! I'm gonna look that up today!
                    -NEVER LET YOUR FEARS STAND IN THE WAY OF YOUR DREAMS-
                    Most of the pics I have of my Hawk/Mods: http://gallery.me.com/stevenhowell

                    "Arseing about with my bikes will end in tears." -Keno04

                    "Dress for the slide, not the ride" - ParcNHawk

                    Comment


                      #11


                      CVMA Expert 434
                      LD Designs :: Pirelli :: Racer's Edge :: Woodcraft :: Chuckwalla Valley Raceway

                      Comment


                        #12
                        this one?

                        whatsoever your hand should find to do, do it gladly, because there is no work, love, knowledge, or wisdom in the grave...

                        Comment


                          #13
                          does anyone ever swing the brake to the under side of the swing arm anymore??? i would like to find some reading material on that
                          1988 & 1991 hawkgt, 2005 rc51

                          Comment


                            #14
                            I did mine 6-7 years ago and um...have still never even changed the fluid It works as well as it needs to,other than to calm the back end down a little bit and to hold it on hills I really don't use the rear brake but meh,it works fine.

                            Aquarium tubing + rubber stopper + 2 stainless hose clamps. It's not the cool green color of the HRC parts but maybe I'll just put some food coloring in there instead...
